| Shell Size / 外殼尺寸 | 24 |
|---|---|
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | UL |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
| Others / 其它 | Side Scrrws / 側邊螺絲 |
此商品目前補貨中，請稍後再來。
相關型號：

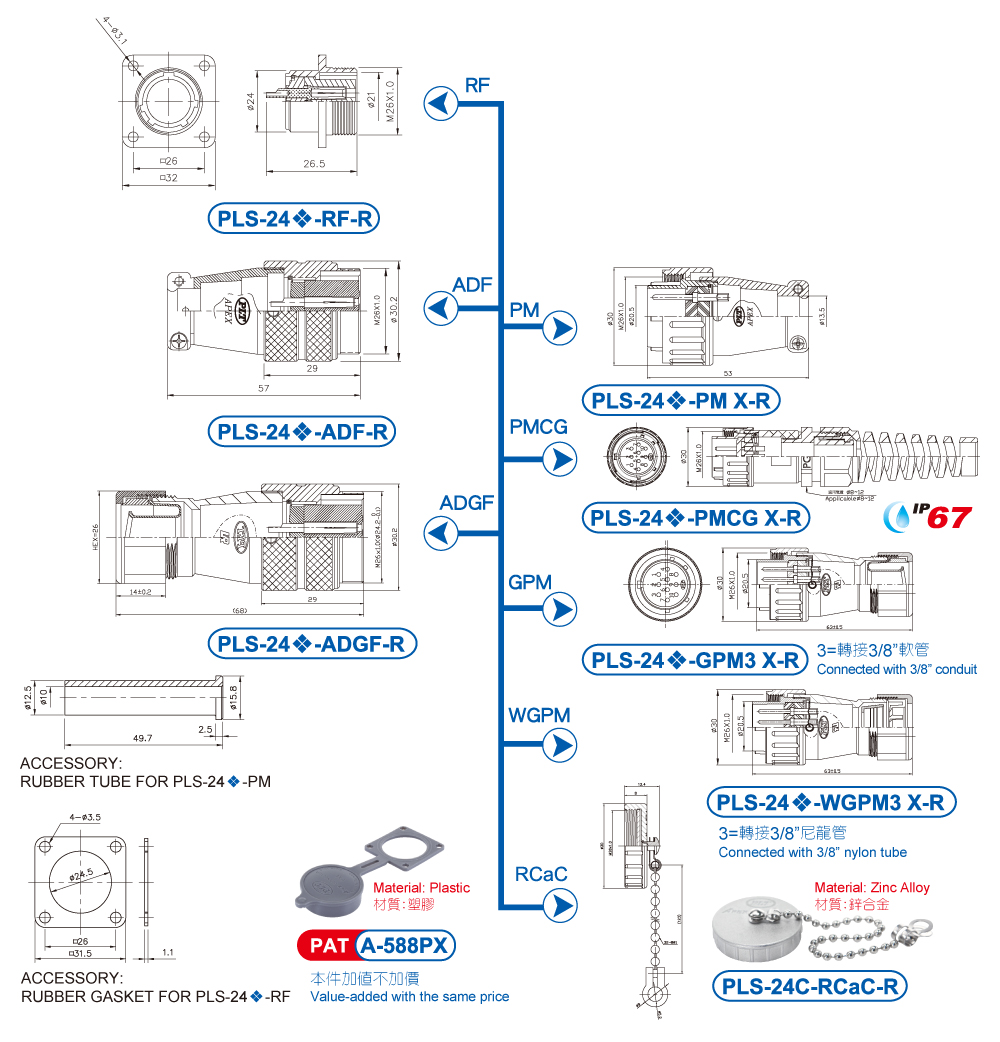

[ PLS-24❖-RF-R ]
[ PLS-24❖-ADF-R ]
[ PLS-24❖-ADGF-R ]
[ PLS-24❖-PM X-R ]
[ PLS-24❖-PMCG X-R ]
[ PLS-24❖-GPM3 X-R ]
[ PLS-24❖-WGPM3 X-R ]
[ PLS-24❖-RCaC-R ]
[ A-588PX ]
| ❖ No. of contacts | 5 | 10 |
|---|---|---|
| Contacts Configuration |  |
 |
| Rated current / voltage | 15A 250V | 10A 250V |
| Operating voltage limit (AC.V.rms) | 400 | 250 |
| Withstanding voltage (AC.V. rms) 1 minute | 1800 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 |
| Solder internal diameter | 2.8 | 1.6 |
