| Shell Size / 外殼尺寸 | 35 |
|---|---|
| Contacts / 導梢數 | 24 |
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

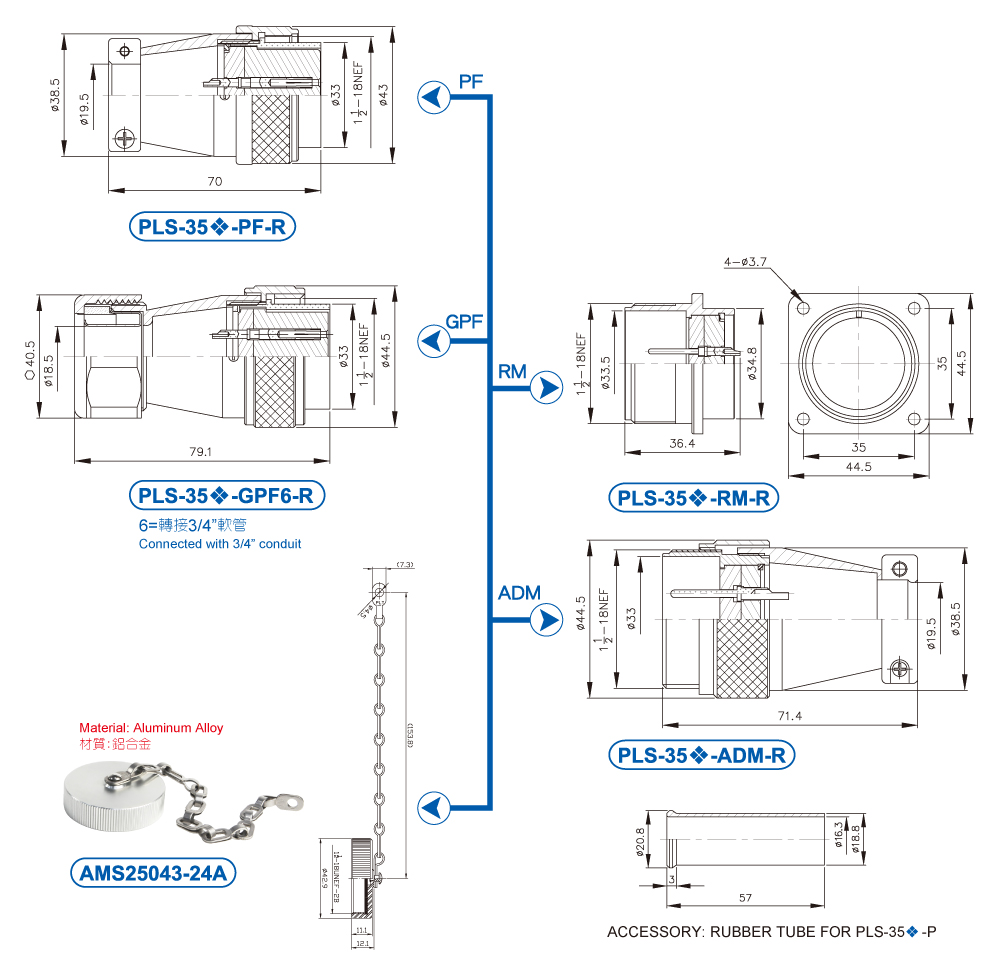

[ PLS-35❖-PF-R ]
[ PLS-35❖-GPF6-R ]
[ AMS25043-24A ]
[ PLS-35❖-RM-R ]
[ PLS-35❖-ADM-R ]
| ❖ No. of contacts | 24 |
|---|---|
| Contacts Configuration |  |
| Rated current / voltage | 8A 250V |
| Operating voltage limit (AC.V.rms) | 200 |
| Withstanding voltage (AC.V. rms) 1 minute | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 |
| Solder internal diameter | 1.8 |
