| Shell Size / 外殼尺寸 | 27 |
|---|---|
| Contacts / 導梢數 | 10 |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

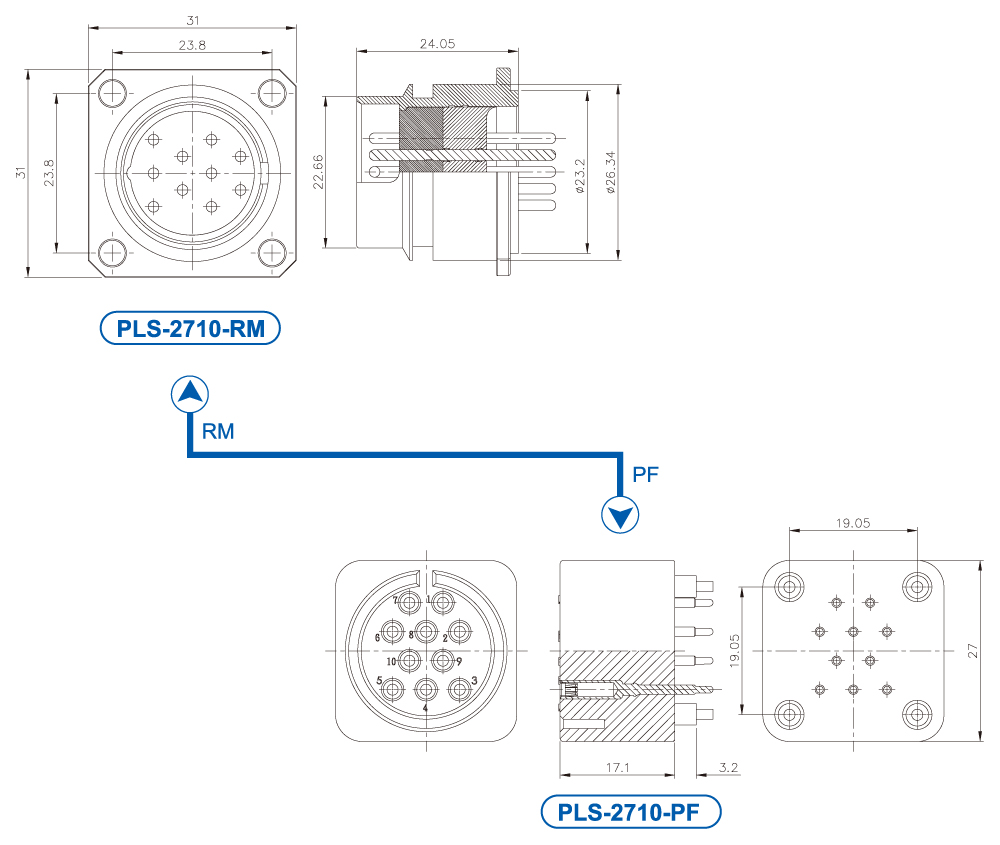

[ PLS-2710-RM ]
[ PLS-2710-PF ]
| No. of contacts | 10 |
|---|---|
| Contacts Configuration |  |
| Rated current / voltage | 5A 250V |
| Operating voltage limit (AC.V.rms) | 250 |
| Withstanding voltage (AC.V. rms) 1 minute | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 5 |
| Solder internal diameter |
