| Shell Size / 外殼尺寸 | 28 |
|---|---|
| Safety Certification / 安規認證 | UL |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
| Others / 其它 | Stainless Steel / 不銹鋼 |
此商品目前補貨中，請稍後再來。
相關型號：

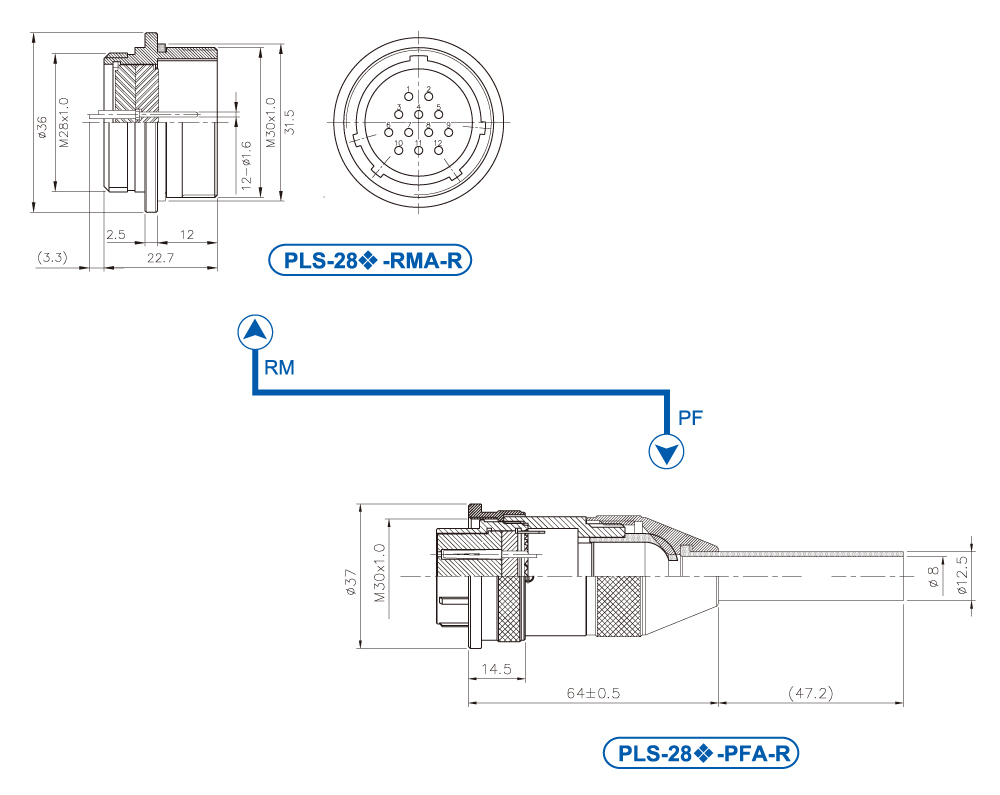

[ PLS-28❖-RMA-R ]
[ PLS-28❖-PFA-R ]
| ❖ No. of contacts | 3 | 4 | 7 | 12 | 16 | 17 | 20 | 26 |
|---|---|---|---|---|---|---|---|---|
| Contacts Configuration |  |
 |
 |
 |
 |
 |
 |
 |
| Rated current / voltage | 15A 250V | 15A 250V | 15A 250V | 10A 250V | 10A 250V | 10A 250V | 5A 250V | 5A 250V |
| Operating voltage limit (AC.V.rms) | 400 | 400 | 400 | 250 | 250 | 250 | 250 | 250 |
| Withstanding voltage (AC.V. rms) 1 minute | 2000 | 2000 | 1800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 | 2000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 | 5 | 5 | 5 | 3 | 3 |
| Solder internal diameter | 3.4 | 3.4 | 2.4 | 1.6 | 1.6 | 1.6 | 1.2 | 1.2 |
