| Shell Size / 外殼尺寸 | 18 |
|---|---|
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

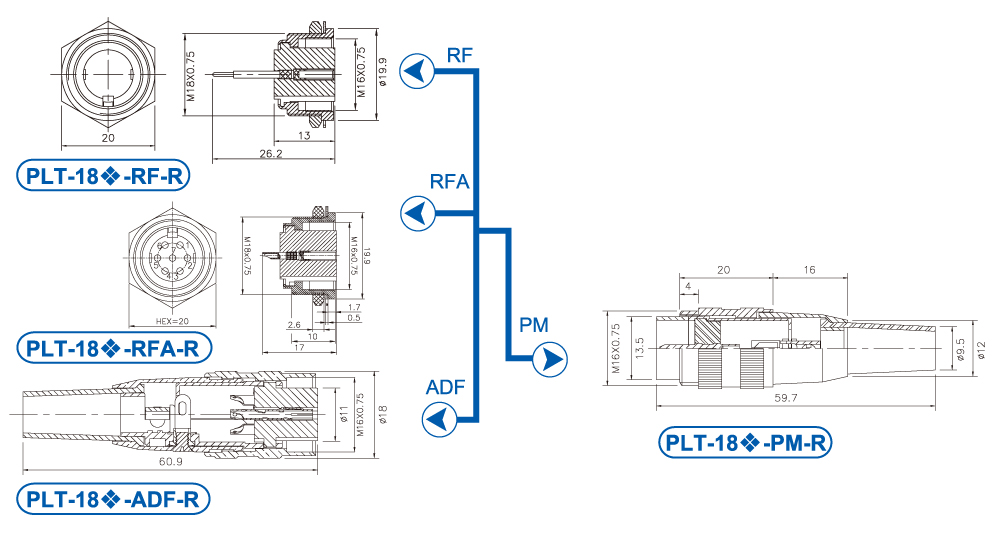

[ PLT-18❖-RF-R ]
[ PLT-18❖-RFA-R ]
[ PLT-18❖-ADF-R ]
[ PLT-18❖-PM-R ]

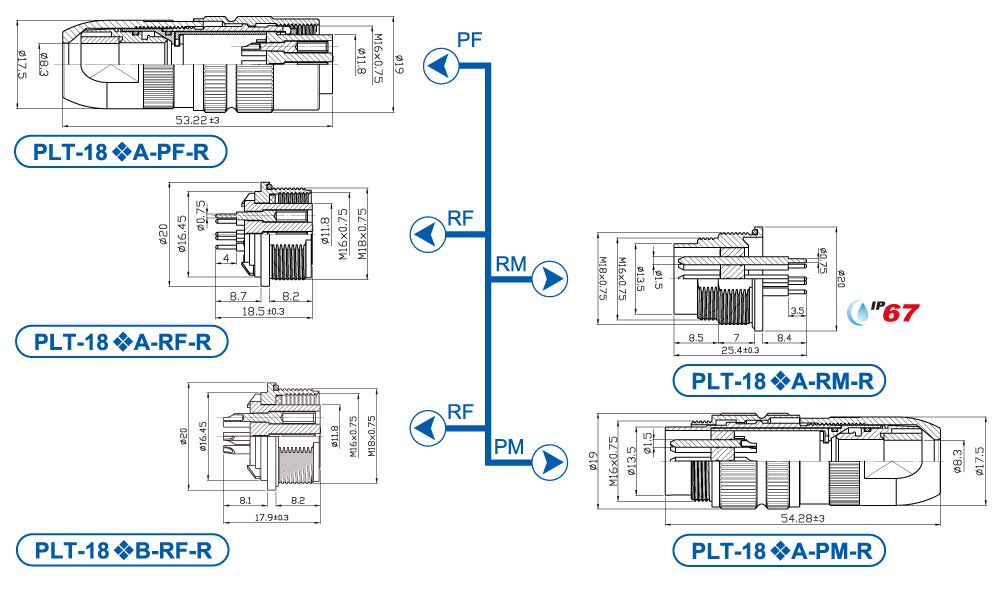

[ PLT-18❖-A-PF-R ]
[ PLT-18❖-A-RF-R ]
[ PLT-18❖-A-RM-R ]
[ PLT-18❖-B-RF-R ]
[ PLT-18❖-A-PM-R ]
| ❖ No. of contacts | 5 | 7 | 8 |
|---|---|---|---|
| Contacts Configuration |  |
 |
 |
| Rated current / voltage | 5A 125V | 5A 125V | 5A 125V |
| Operating voltage limit (AC.V.rms) | 200 | 200 | 200 |
| Withstanding voltage (AC.V.rms) 1 minute | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 1000 | 1000 | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 |
| Solder internal diameter | 1.55 | 1.55 | 1.55 |
