| Shell Size / 外殼尺寸 | 30 |
|---|---|
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | UL |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

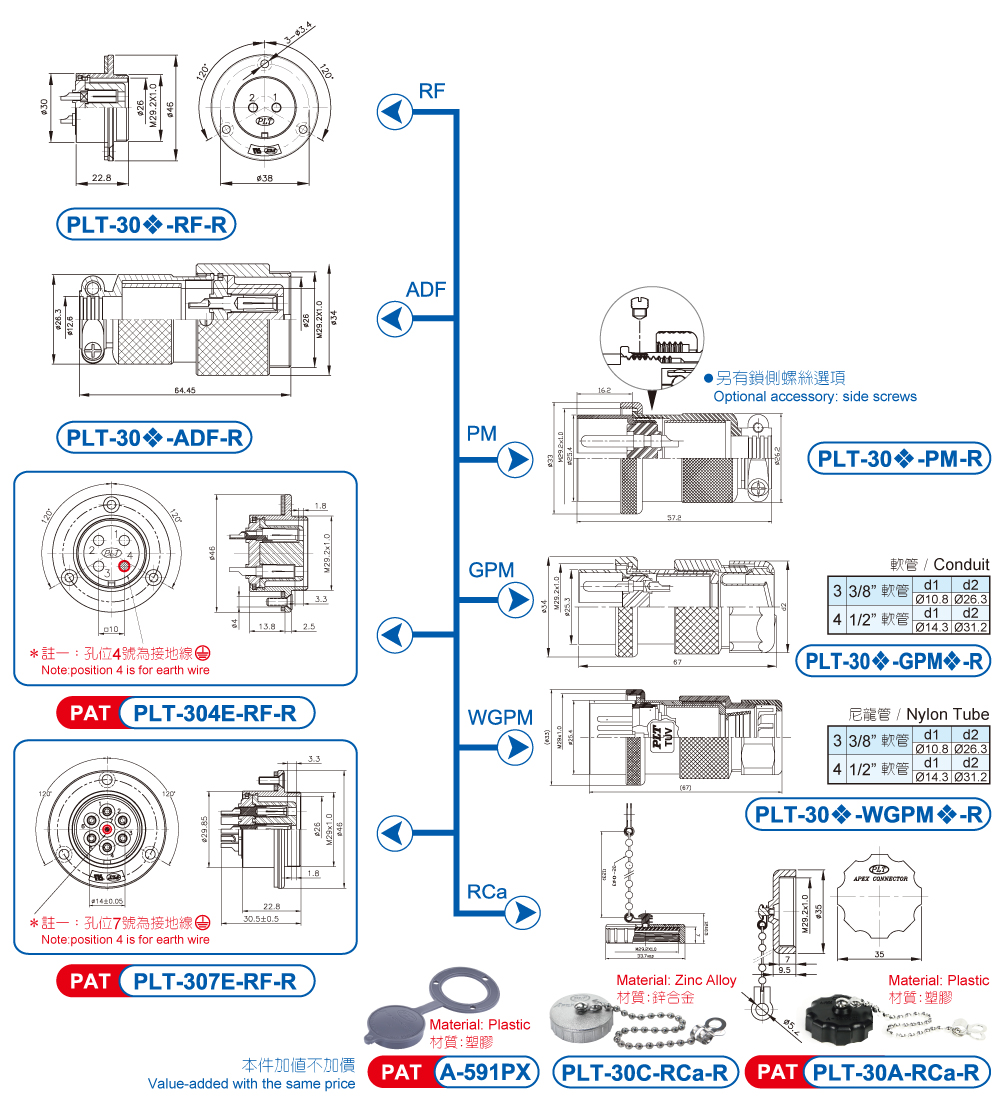

[ PLT-30❖-RF-R ]
[ PLT-30❖-ADF-R ]
[ PLT-304E-RF-R ]
[ PLT-307E-RF-R ]
[ PLT-30❖-PM-R ]
[ PLT-30❖-GPM-R ]
[ PLT-30❖-WGPM-R ]
[ A-591PX ]
[ PLT-30C-RCa-R ]
[ PLT-30A-RCa-R ]
| ❖ No. of contacts | 2 | 3 | 4 | 5 | 7 | 8 |
|---|---|---|---|---|---|---|
| Contacts Configuration |  |
 |
 |
 |
 |
 |
| Rated current / voltage | 15A 250V | 15A 250V | 15A 250V | 15A 250V | 15A 250V | 10A 250V |
| Operating voltage limit (AC.V.rms) | 400 | 400 | 400 | 400 | 400 | 300 |
| Withstanding voltage (AC.V.rms) 1 minute | 2000 | 2000 | 2000 | 1800 | 1800 | 1800 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 | 3 | 3 | 3 |
| Solder internal diameter | 2.8 | 2.8 | 2.8 | 2.8 | 2 | 2.5 |
