| Shell Size / 外殼尺寸 | 11 |
|---|---|
| 品牌 | 錩鋼 |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

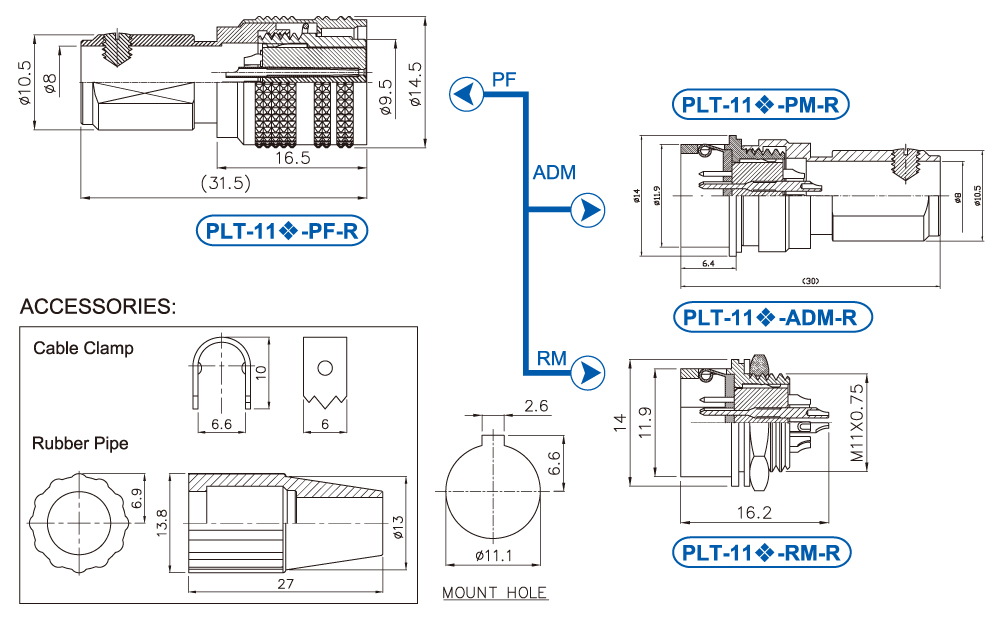

[ PLT-11❖-PF-R ]
[ PLT-11❖-PM-R ]
[ PLT-11❖-ADM-R ]

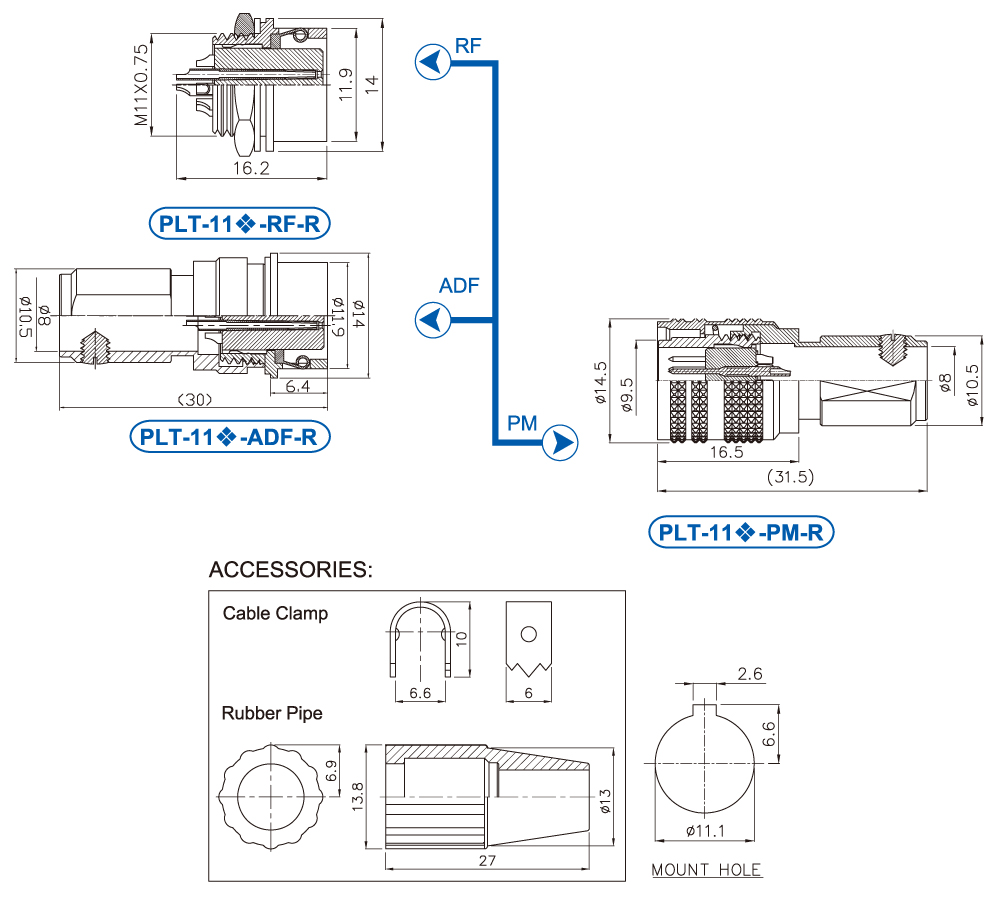

[ PLT-11❖-RM-R ]
[ PLT-11❖-RF-R ]
[ PLT-11❖-ADF-R ]
| ❖ No. of contacts | 10 | 12 | 16 |
|---|---|---|---|
| Contacts Configuration |  |
 |
 |
| Rated current / voltage | 2A 125V | 2A 125V | 1A 30V |
| Operating voltage limit (AC.V.rms) | 125 | 125 | 125 |
| Withstanding voltage (AC.V.rms) 1 minute | 125 | 125 | 100 |
| Insulation resistance (MΩ MIN.) at DC 500V | 200 | 200 | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 30 | 30 | 30 |
