| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。

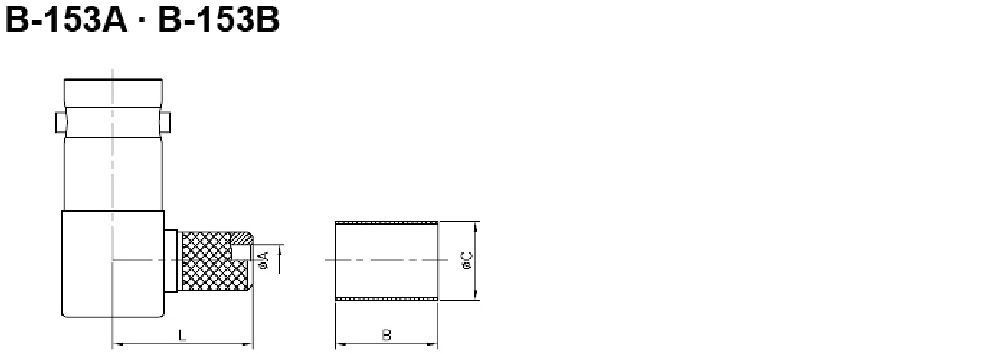

| Model No. | Equivalent identification |
Cables accommodated |
ØA | B | ØC | L | Remarks |
|---|---|---|---|---|---|---|---|
| B-153 A | BNC-LP-58U | RG-58A/U, 58/U | Ø3.2 | 12.7 | Ø6.5 | 12.7 | |
| B-153 B | BNC-LP-59U | RG-59U, 62/U | Ø3.8 | 12.7 | Ø7.5 | 12.7 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
