| Model No. | Equivalent identification |
Cables accommodated |

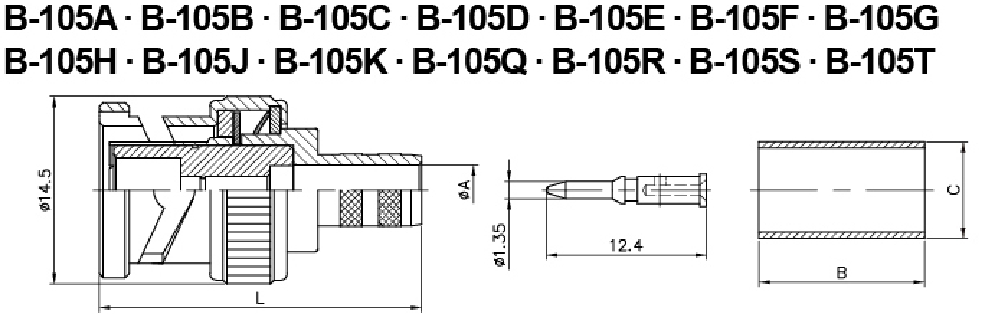

ØA | ØB | ØC | L | Remarks |
|---|---|---|---|---|---|---|---|
| B-105 A | BNC-P-58U | RG-58A/U, 58/U | Ø3.2 | Ø12.8 | Ø6.5 | 25 | |
| B-105 B | BNC-P-59U | RG-59U, 62/U | Ø3.9 | Ø12.8 | Ø7.5 | 25 | |
| B-105 C | BNC-P-1.5 | 1.5C-2V | Ø2.7 | Ø12.8 | Ø5 | 25 | |
| B-105 D | BNC-P-3 | 3C-2V | Ø3.3 | Ø12.8 | Ø6.5 | 25 | |
| B-105 E | BNC-P-5 | 5C-2V | Ø5.3 | Ø12.8 | Ø9.0 | 25 | |
| B-105 F | BNC-P-5F | 5C-FB | Ø5.1 | Ø12.8 | Ø9 | 25 | |
| B-105 G | BNC-P-5CW | 5C-2W | Ø5.3 | Ø12.8 | Ø9.2 | 25 | |
| B-105 H | BNC-P-3D | 3D-2V | Ø3.3 | Ø12.8 | Ø6.5 | 25 | |
| B-105 J | BNC-P-5D | 5D-2V | Ø5.3 | Ø12.8 | Ø9.0 | 25 | |
| B-105 K | BNC-P-5DW | 5D-2W | Ø5.3 | Ø12.8 | Ø9.2 | 25 | |
| B-105 Q | BNC-P-3D | 3D-2W | Ø3.3 | Ø12.8 | Ø7.5 | 25 | |
| B-105 R | BNC-P-2.5 | 2.5C-2V | Ø4 | Ø12.8 | Ø6.5 | 25 | |
| B-105 S | BNC-P-1.7C | 1.7C-2V | Ø1.8 | Ø10 | Ø3.8 | 24 | |
| B-105 T | BNC-P-179 | RG-179/U | Ø2.7 | Ø14 | Ø5.2 | 22.6 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
