| Model No. | Equivalent identification |
Cables accommodated |

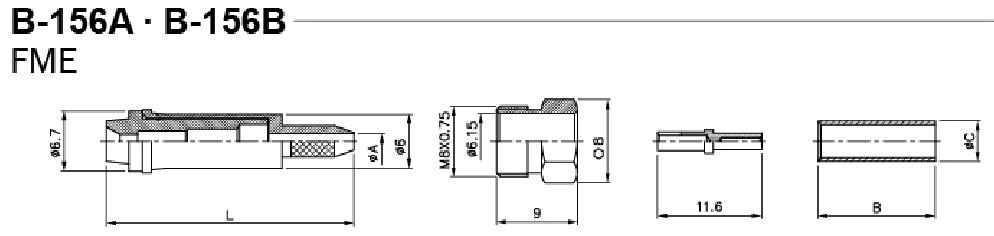

ØA | ØB | ØC | L | Remarks |
|---|---|---|---|---|---|---|---|
| B-156 A | FME CRIMP-58 | RG-55/U, 58/U | Ø3.2 | Ø12.7 | Ø6.5 | 27.3 | |
| B-156 B | FME CRIMP-59 | RG-59U, 62/U | Ø3.8 | Ø12.7 | Ø7.5 | 27.3 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
