| Shell Size / 外殼尺寸 | 16 |
|---|---|
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | UL |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。

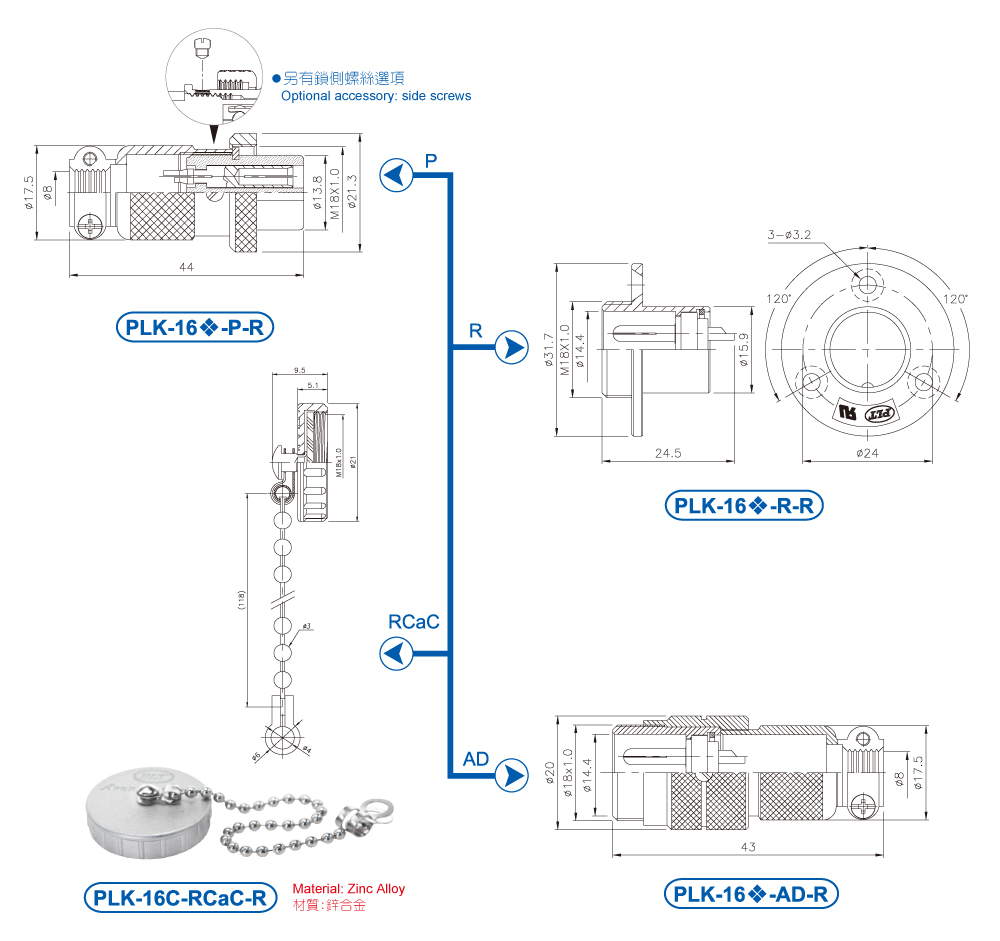

相關型號：
[ PLK-16❖-P-R ]
[ PLK-16❖-R-R ]
[ PLK-16C-RCaC-R ]
[ PLK-16❖-AD-R ]
| ❖ No. of contacts | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Contacts Configuration |  |
 |
 |
 |
| Rated current / voltage | 5A 125V | 5A 125V | 5A 125V | 5A 125V |
| Operating voltage limit (AC.V.rms) | 200 | 200 | 200 | 200 |
| Withstanding voltage (AC.V. rms) 1 minute | 1000 | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 1000 | 1000 | 1000 | 1000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 | 3 |
| Solder internal diameter | 1.5 | 1.5 | 1.5 | 1.3 |
