| Shell Size / 外殼尺寸 | 14 |
|---|---|
| 品牌 | 錩鋼 |
此商品目前補貨中，請稍後再來。
相關型號

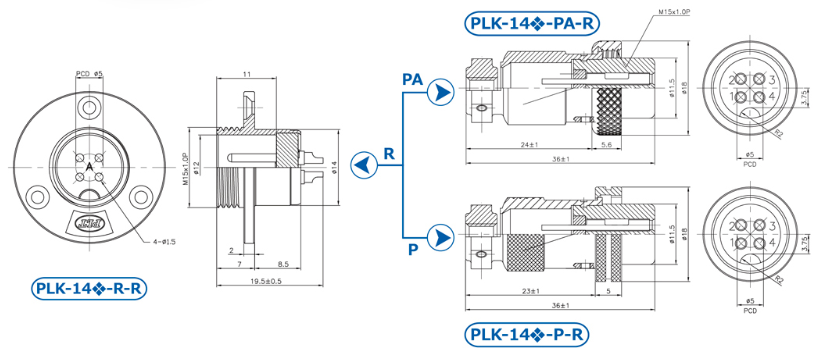

[ PLK-14❖-R-R ]
[ PLK-14❖-PA-R ]
[ PLK-14❖-P-R ]
| ❖ No. of contacts | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Contacts Configuration |
 |
 |
 |
 |
| Rated current / voltage | 5A 125V | 5A 125V | 5A 125V | 5A 125V |
| Operating voltage limit (AC.V.rms) | 200 | 200 | 200 | 200 |
| Withstanding voltage (AC.V. rms) 1 minute | 1000 | 1000 | 1000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 100 | 100 | 100 | 100 |
| Contact resistance (mΩ MAX.) at DC 1A | 10 | 10 | 10 | 10 |
| Solder internal diameter | 1.8 / 2.3 | 1.8 / 2.3 | 1.5 |
