| Shell Size / 外殼尺寸 | 42 |
|---|---|
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

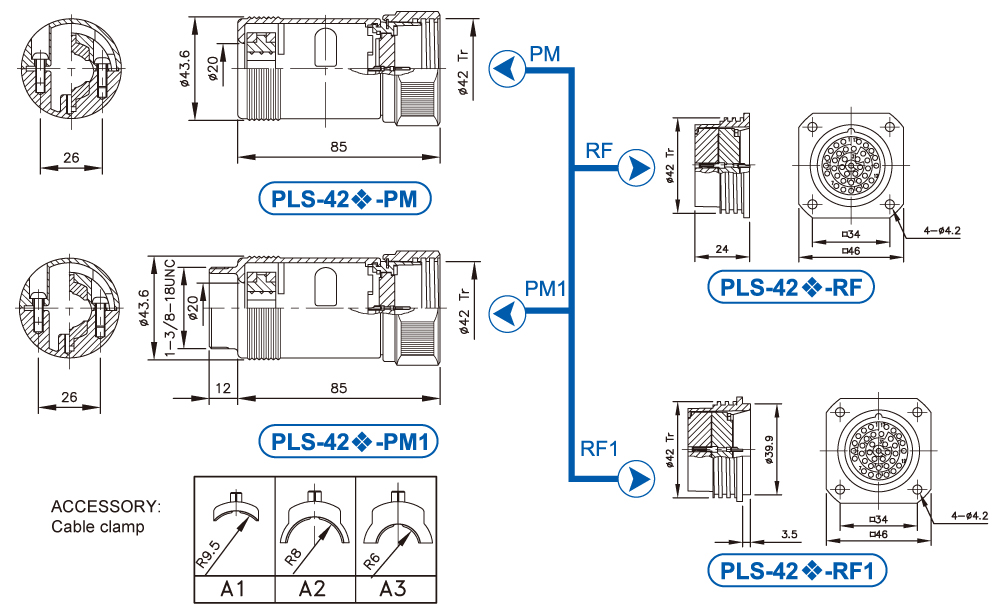

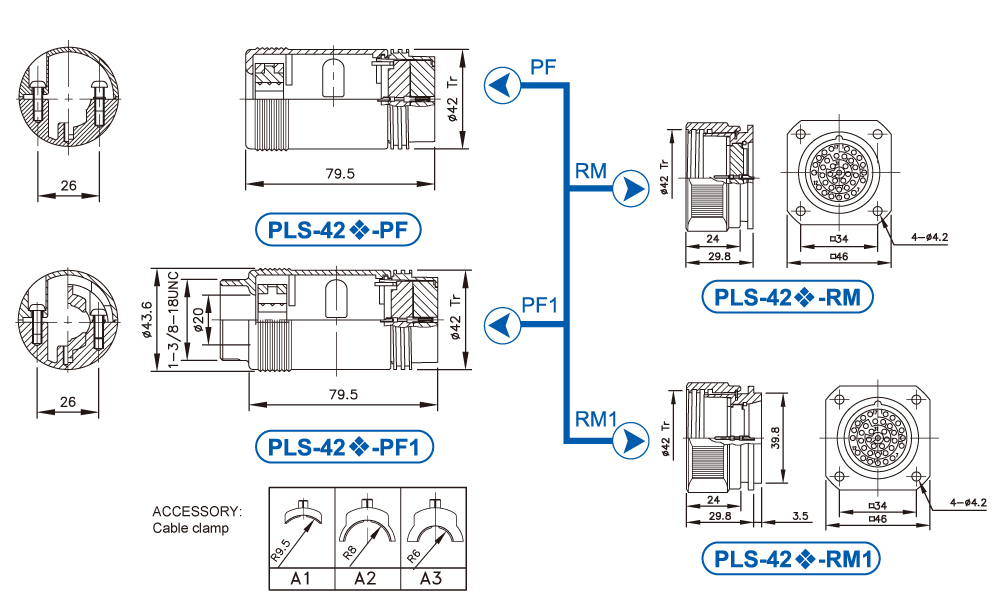

[ PLS-42❖-PF ]
[ PLS-42❖-PF1 ]
[ PLS-42❖-PM ]
[ PLS-42❖-PM1 ]
[ PLS-42❖-RM ]
[ PLS-42❖-RM1 ]
[ PLS-42❖-RF ]
[ PLS-42❖-RF1 ]
| ❖ No. of contacts | 7 | 37 |
|---|---|---|
| Contacts Configuration |  |
 |
| Rated current / voltage | 13A 250V | 5A 250V |
| Operating voltage limit (AC.V.rms) | 500 | 500 |
| Withstanding voltage (AC.V. rms) 1 minute | 2000 | 3000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 |
| Solder internal diameter | 3.5 | 1.2 |
