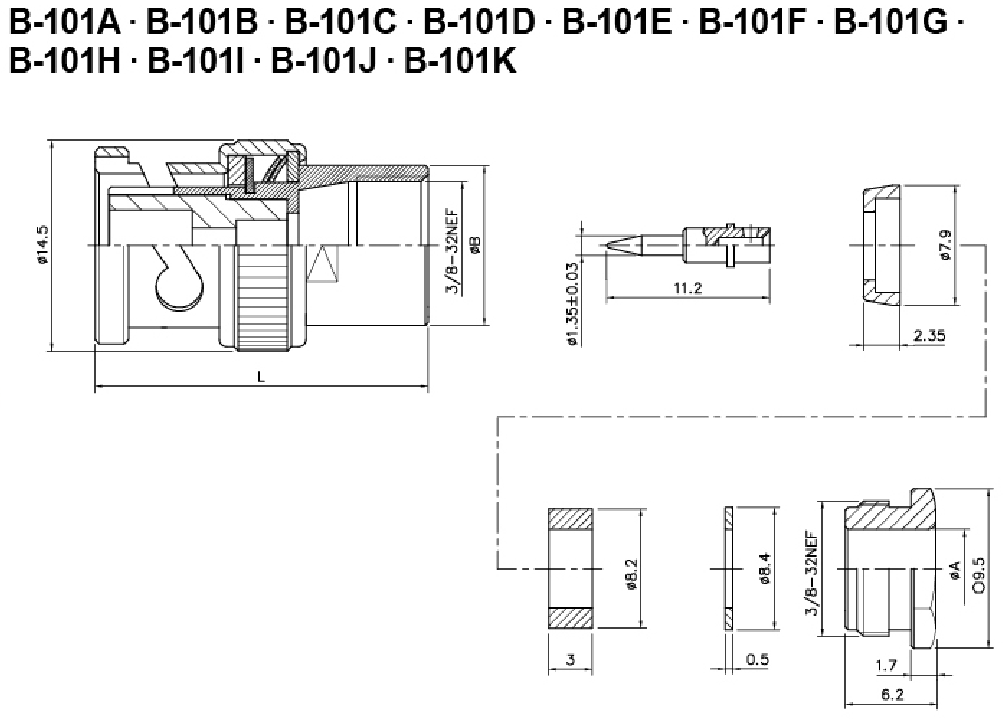

| Model No. | Equivalent identification |
Cables accommodated |
ØA | ØB | L | ØC | Remarks |
|---|---|---|---|---|---|---|---|
| B-101 A | BNC-P-58U | RG-58A/UU, 58/U | Ø5.5 | Ø11 | 23 | ||
| B-101 B | BNC-P-59U | BNC-P-59U | Ø6.6 | Ø11 | 23 | ||
| B-101 C | BNC-P-8/U | BNC-P-8/U | Ø11.2 | Ø17.5 | 34.7 | ||
| B-101 D | BNC-P-1.5 | BNC-P-1.5 | Ø3.2 | Ø11 | 23 | Ø9.5 | |
| B-101 E | BNC-P-1.7 | BNC-P-1.7 | Ø3.2 | Ø10.8 | 23 | Ø9.5 | |
| B-101 F | BNC-P-2.5 | BNC-P-2.5 | Ø4.5 | Ø11 | 23 | Ø9.5 | |
| B-101 G | BNC-P-3 | BNC-P-3 | Ø6.3 | Ø11 | 23 | Ø9.5 | |
| B-101 H | BNC-P-5 | BNC-P-5 | Ø7.8 | Ø15 | 27.3 | Ø15 | |
| B-101 I | BNC-P-3.5W | BNC-P-3.5W | |||||
| B-101 J | BNC-P-3W | BNC-P-3W | Ø6.6 | Ø11 | 23 | Ø9.5 | |
| B-101 K | BNC-P-5W | BNC-P-5W | Ø8.6 | Ø15 | 27.3 | Ø15 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
