| Shell Size / 外殼尺寸 | 40 |
|---|---|
| 品牌 | 錩鋼 |
| Safety Certification / 安規認證 | UL |
| Safety Certification / 安規認證 | TÜV |
| RoHS / 歐盟環保指令 | 是 |
此商品目前補貨中，請稍後再來。
相關型號：

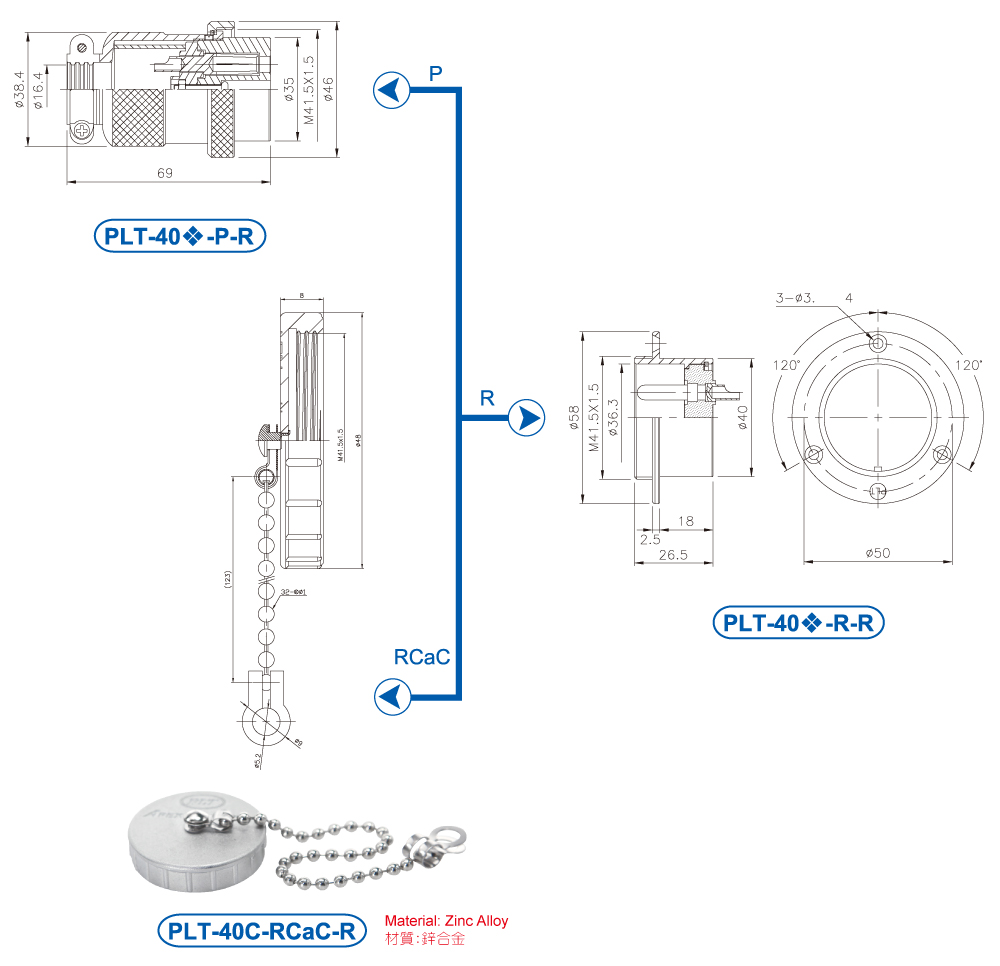

[ PLT-40❖-P-R ]
[ PLT-40❖-R-R ]
[ PLT-40C-RCaC-R ]
| ❖ No. of contacts | 4 | 8 | 37 |
|---|---|---|---|
| Contacts Configuration |  |
 |
 |
| Rated current / voltage | 30A 250V | 20A 250V | 5A 300V |
| Operating voltage limit (AC.V.rms) | 500 | 400 | 300 |
| Withstanding voltage (AC.V.rms) 1 minute | 2500 | 2000 | 1000 |
| Insulation resistance (MΩ MIN.) at DC 500V | 2000 | 2000 | 1800 |
| Contact resistance (mΩ MAX.) at DC 1A | 3 | 3 | 3 |
| Solder internal diameter | 4 | 4.8 | 1.9 |
