| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。
| Model No. | Equivalent identification |
Cables accommodated |
ØA | ØB | L | Remarks |
|---|---|---|---|---|---|---|

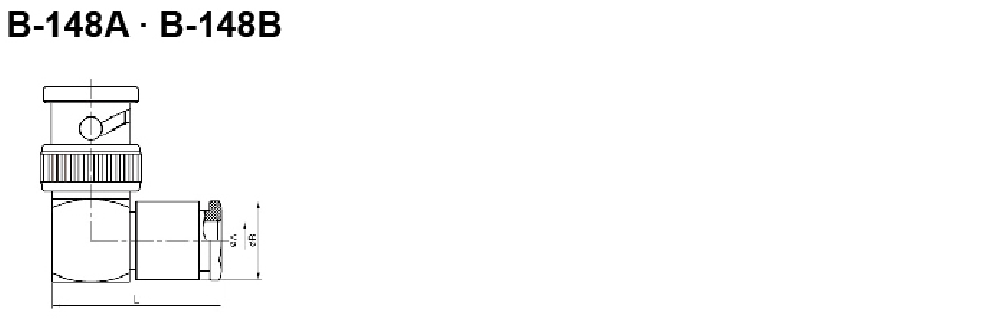

| B-148 A | BNC-LP-58U | RG-55/U, RG-58A/U | Ø5.5 | Ø10.8 | 27.5 | UG-913/G |
| B-148 B | BNC-LP-3CV | 3D-2V, 3C-2V | Ø6.3 | Ø10.8 | 27.5 |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
