| 品牌 | 錩鋼 |
|---|
此商品目前補貨中，請稍後再來。

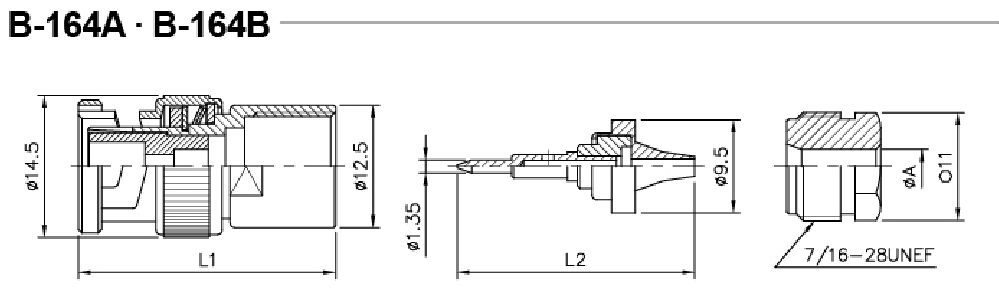

| Model No. | Equivalent identification |
Cables accommodated |
ØA | L1 | L2 | Remarks |
|---|---|---|---|---|---|---|
| B-164 A | BNC-P-2.5 | 2.5D-2V | Ø4.5 | 26 | 24.4 | Screw lock type |
| B-164 B | BNC-P-1.5 | 1.5D-2V | Ø3.2 | 26 | 24.4 | Screw lock type |
| Voltage Rating | AC 500V |
| Withstanding Voltage | AC 1,500V one minute |
| Insulation Resistance | 1,000MΩ min at DC 500V |
| Contact Resistance | 3m Ω max at DC 1A |
| Frequency Range | 1-2 GHz |
