M8-LPFL Input

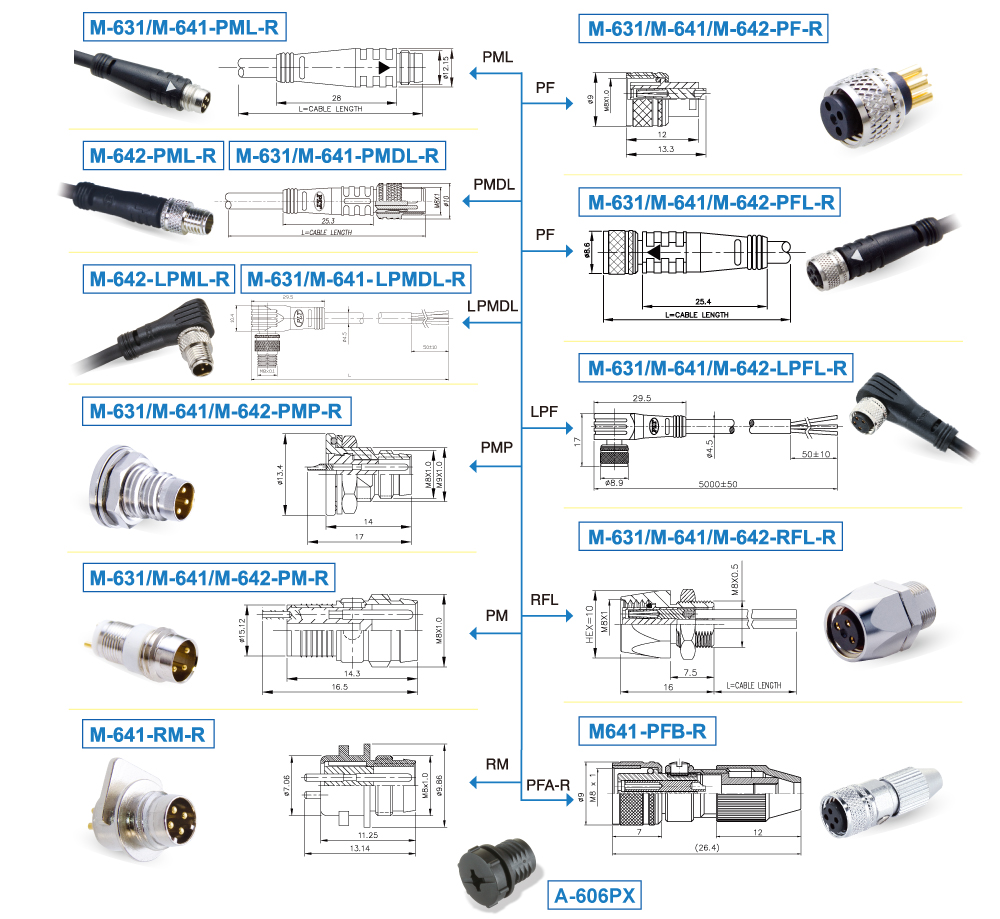

相關型號：
[ M-631/M-641-PML-R ]
[ M-642-PML-R ]
[ M-631/M-641-PMDL-R ]
[ M-642-LPML-R ]
[ M-631/M-641-LPMDL-R ]
[ M-631/M-641/M-642-PMP-R ]
[ M-631/M-641/M-642-PM-R ]
[ M-641-RM-R ]
[ M-631/M-641/M-642-PF-R ]
[ M-631/M-641/M-642-PFL-R ]
[ M-631/M-641/M-642-LPFL-R ]
[ M-631/M-641/M-642-RFL-R ]
[ M641-PFB-R ]
[ A-606PX ]

No. of contacts 接點數目	631	641	642
Contacts Configuration 接點方位
Standard 標準規範	IEC 61076-2-101(Ed.1) / IEC 60947-5-2
Rated voltage 額定電壓	60V AC/DC	30V AC/DC
Rated Current 額定電流	3A
Insulation resistance (MΩ MIN.) at DC 500V / 絕緣阻抗	300
Contact resistance (mΩ MAX.) at DC 1A 接觸阻抗	3
Solder inner diameter (Φ mm ) 焊孔內徑	1
